　　PVC pipe production line equipment function

Ingredients: is the PVC stabilizers, plasticizers, antioxidant and other accessories, scale, technology has mixed with high-speed machines, materials and machinery from friction material temperature of heat setting process, and then the cold mixing machine will material reduced to 40-50 degrees. Set aside.

Extrusion machine: this machine is equipped with quantitative loading equipment, make out in and add the shoes to match and synchronous speed, guarantee the stability of products. Screw within the barrel rotates, the plasticizing PVC mixture into the nose, so as to achieve compaction, melting and mixing homogenization; And achieve the purpose of the exhaust, dehydration. Feeding device and the screw driving device adopts frequency control of motor speed, which can realize synchronous speed extrusion die head part: through compaction, molten PVC material through the screw to the extrusion die head tube billet.

Vacuum calibrating tank used for styling, cooling pipes, vacuum system for setting and cooling water tank on the vacuum system and water circulation system, stainless steel casing, circulating water spray cooling, vacuum system before and after the mobile device mounted on the tank and the left and right sides, high and low adjusting device manually.

Tractor is used for continuously and automatically to have the stiffening of cooling pipe from the head office, frequency control of motor speed.

Automatic cutting machine: according to the required length by travel switch control, automatic cutting, and delay the plane, in the process of cutting and pipes running in sync, cutting process performed by electric and pneumatic drive. Turn rack material movement by cylinder by pneumatic control, is expected to set up there is a limit device, when cutting saws cutting pipes, pipe to transport, after a delay, cylinder into the work, to achieve double material movement, the purpose of discharging. By the time delay for a few seconds automatically reset after discharge, waiting for the next cycle.

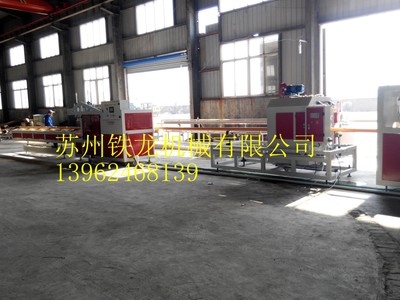

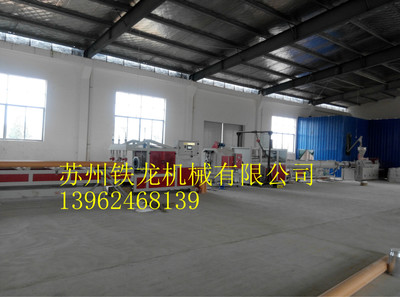

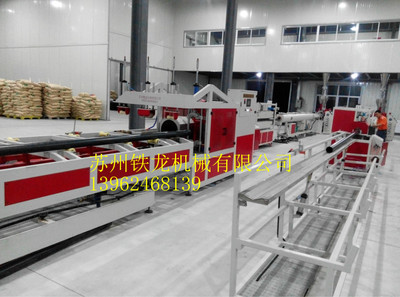

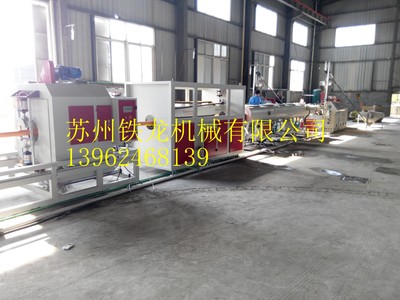

The company all kinds of diameter UPVC pipe production line, production of all kinds of pipe is widely used in water supply, water drainage, etc. Extrusion host 80 cone double extruder, 65.51 taper double extruder for choice; Auxiliary GF110, GF160, GF250, GF400, GF630 series; Tractors have three blade, four claws and six claw tractor; Cutting machine has a circular cutting tool, cutting, etc. Large diameter PVC shunt scaffolding mold, has the advantages of materials, advanced structure, high performance. Is the production of various kinds of diameter of UPVC pipe preferable production equipment. The factory to provide clients with comprehensive technical support and after-sales service.
